Cameras & Vision

A camera is a device like any other: an ESP32-CAM flashed with the generic camera firmware registers itself, then streams encrypted JPEG frames to the server over a dedicated video channel. Everything else happens in the UI: live view, capture settings, recording, object detection and playback with the detections drawn over the video.

The pipeline has three independent pieces, all wired in a flow:

1. Camera source — turns the camera stream into flow messages (a reference to the frame, never the bytes themselves).
2. Video recording — writes the frames to storage as short MJPEG-AVI segments.
3. Object detection — runs an ONNX model on the frames and emits the detections; optionally keeps them as a detection layer next to the recording.

No recording node means nothing is stored: live view and detection work without writing a single frame.

CamerasCopy Anchor Link

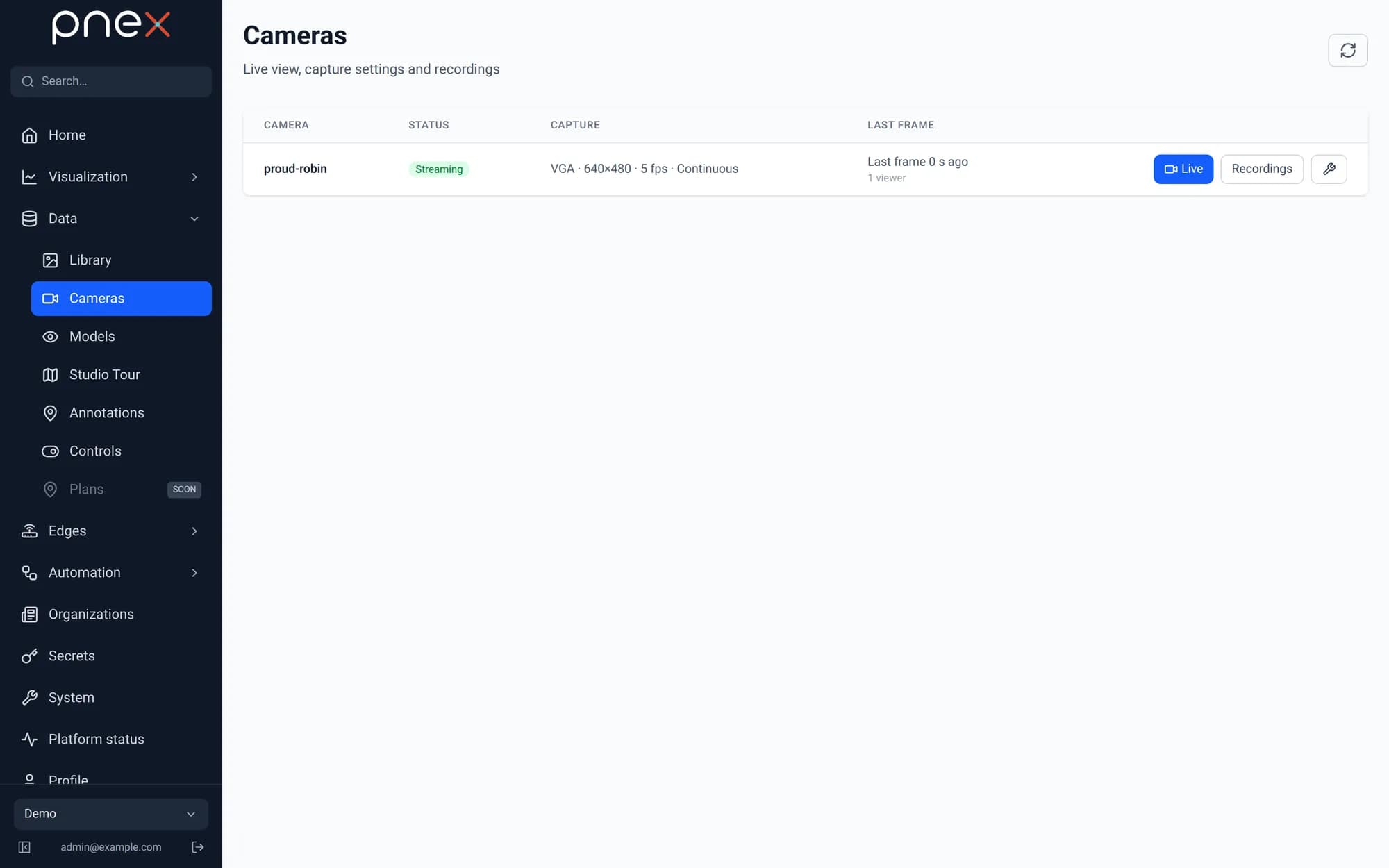

Data › Cameras lists every device that announced a camera, with its streaming status, capture settings and the age of the last frame.

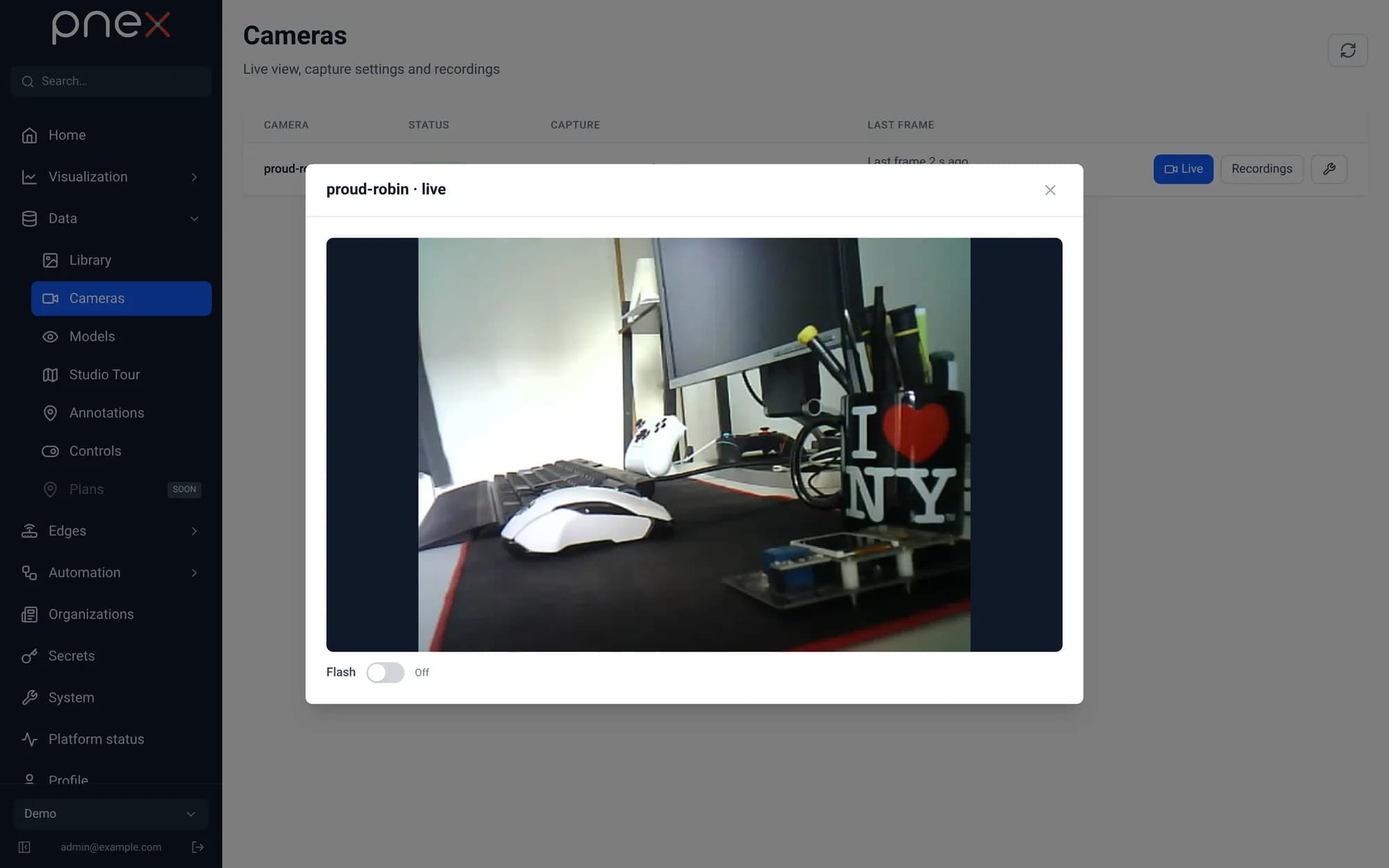

• Live opens the stream in the browser. Frames are pushed as they arrive; nothing is stored and no polling is involved.
• Recordings opens the day timeline and the player (see below).

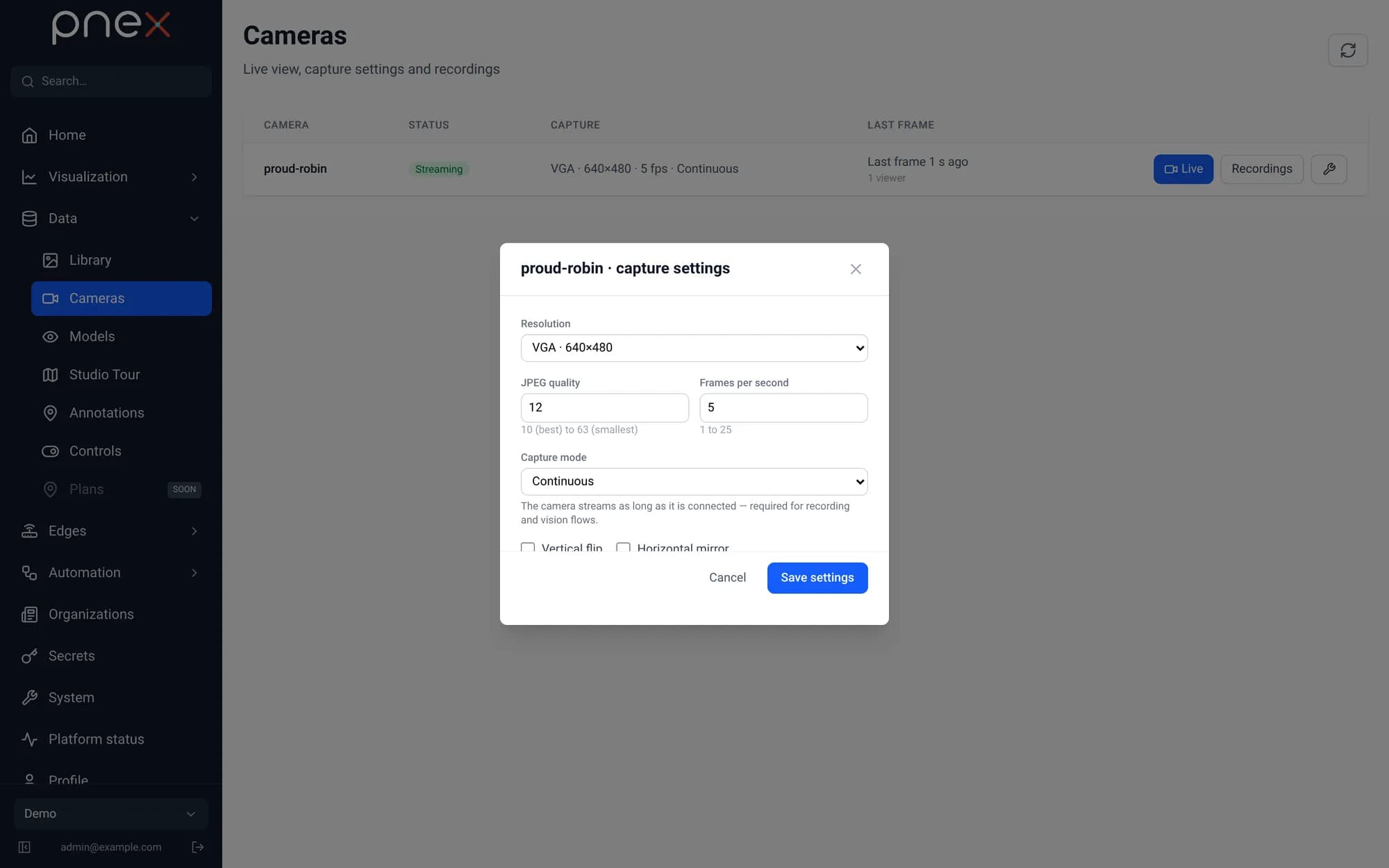

• The wrench opens the capture settings: resolution, JPEG quality, frames per second, flips, and the capture mode.

The capture mode decides when the camera sends frames:

A deployed flow containing a Camera source always keeps its camera awake, even in On demand mode.

ModelsCopy Anchor Link

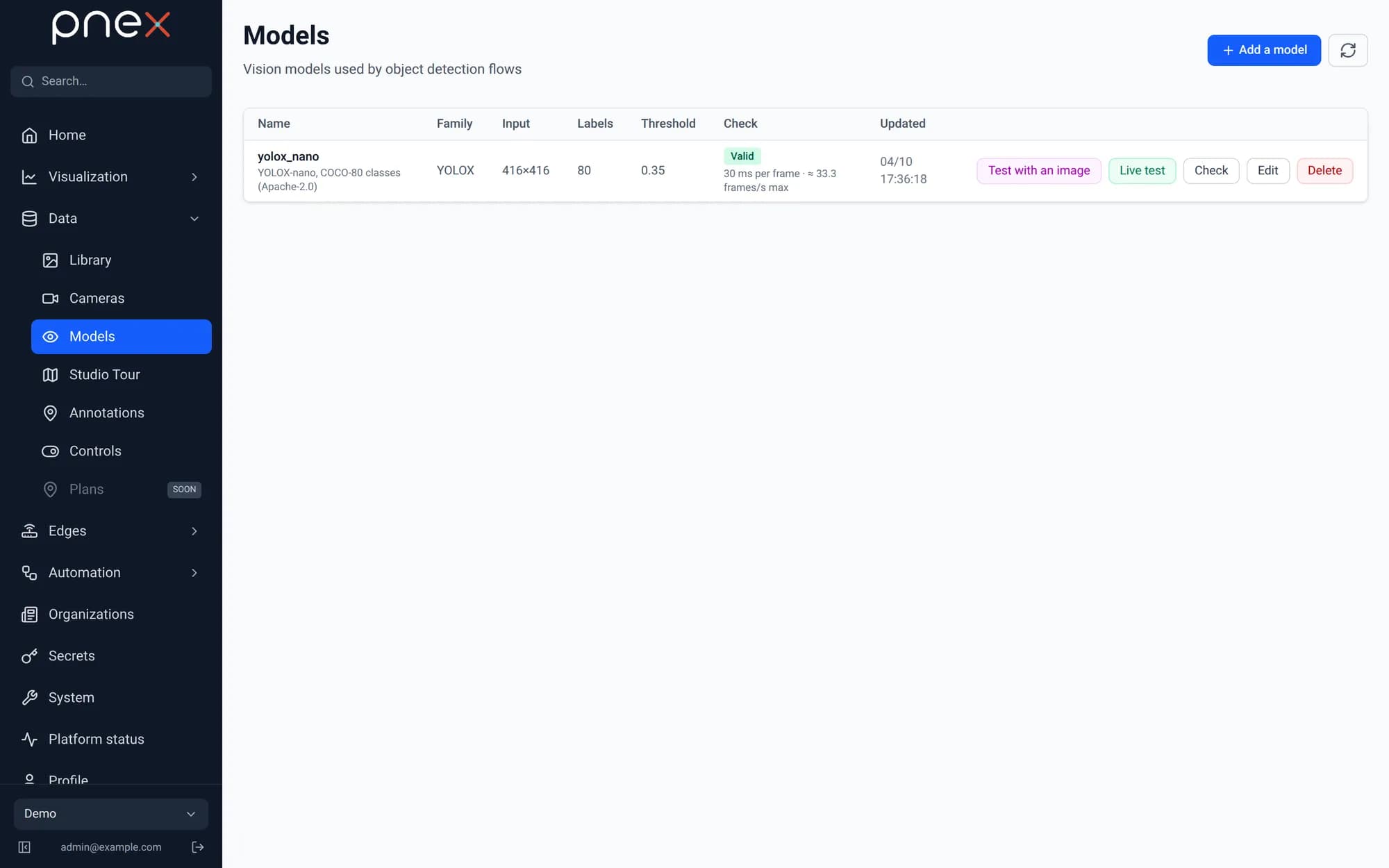

Data › Models is the registry of the vision models your flows can use. A model is an ONNX file stored in the media library plus its inference settings: family (YOLOX), input size, labels, score threshold and NMS IoU.

Add a modelCopy Anchor Link

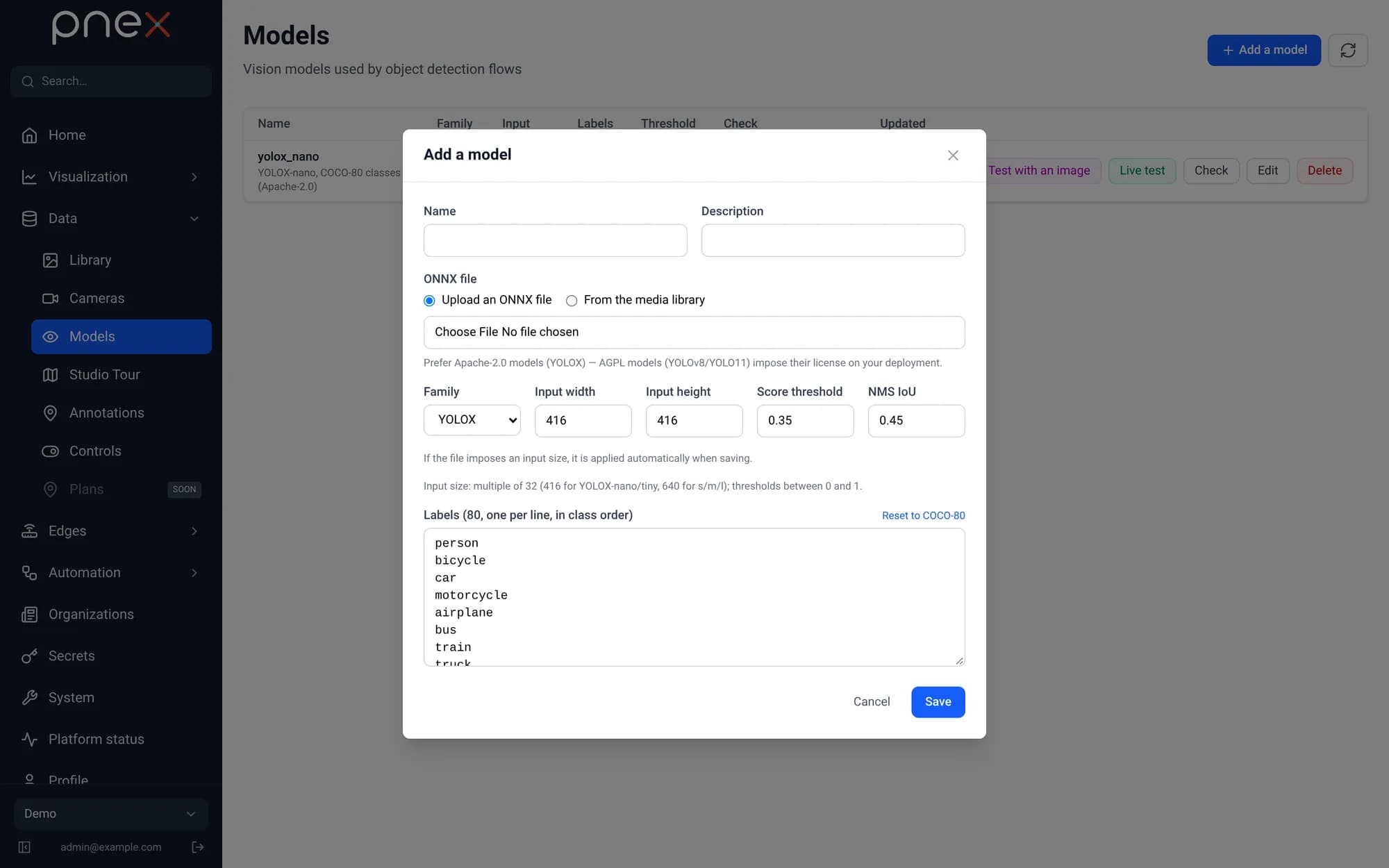

Click Add a model, then upload an .onnx file or pick one already in the media library.

• The file decides the input size. When the ONNX file declares fixed dimensions (416×416 for YOLOX-nano/tiny, 640×640 for s/m/l), they are applied on save, whatever was typed.
• Labels are one per line, in class order. COCO-80 is pre-filled; the number of labels must match the number of classes of the file.
• The model is checked on save: it is loaded and run once on this server. A model that does not run is refused with the actual error, never stored half-working.
• The Check column shows the measured inference time and the sustainable rate (≈ frames per second). A model slower than your camera will skip frames.

Test a modelCopy Anchor Link

• Test with an image runs the model on a JPEG or PNG and draws the boxes.

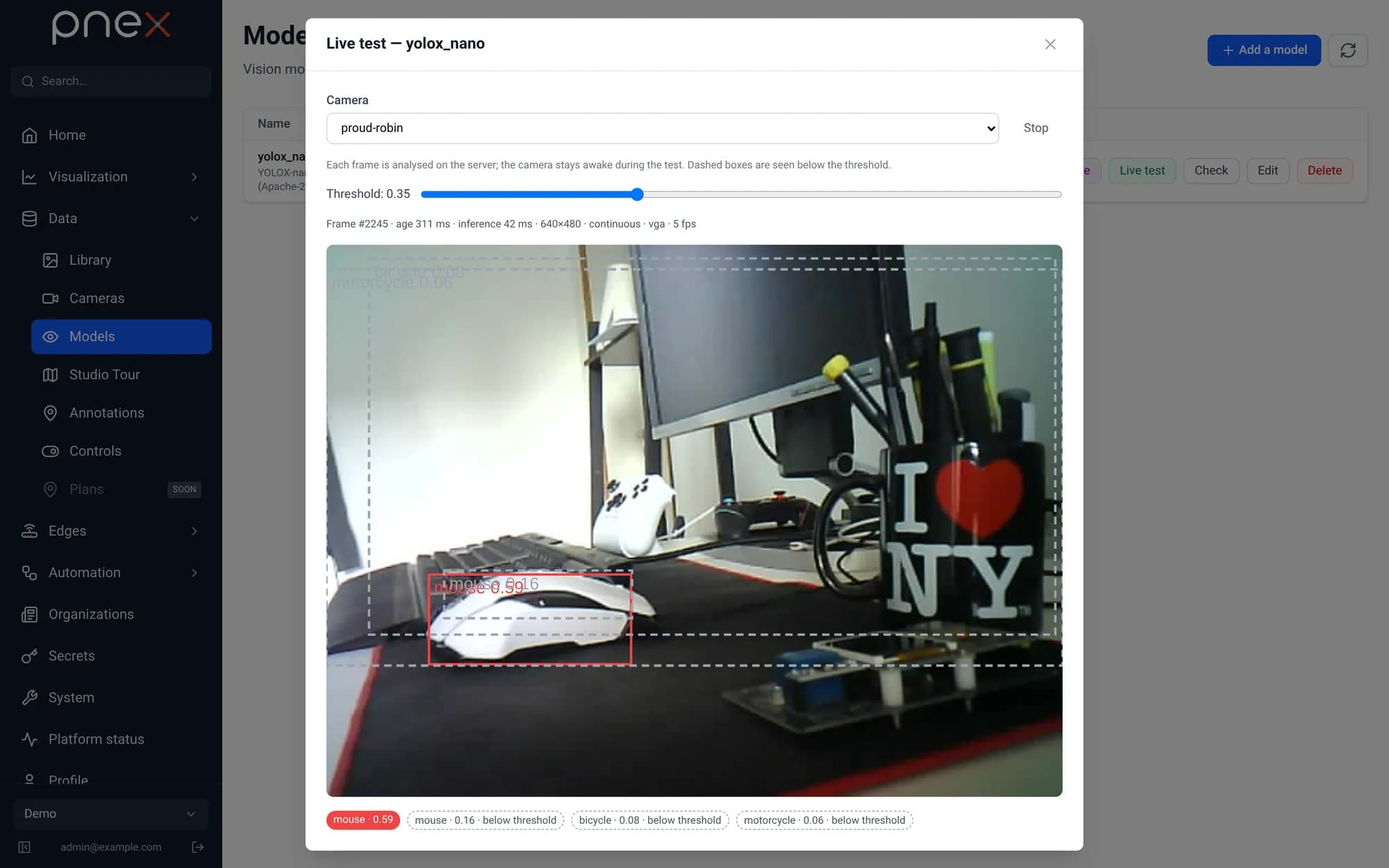

• Live test runs it on the latest frames of a camera. Boxes above the threshold are solid, those below are dashed: move the threshold slider to see what the model almost saw, then Apply this threshold to the model. Warnings flag a stale frame, an image too dark, or a model slower than the camera.

The detection and recording flowCopy Anchor Link

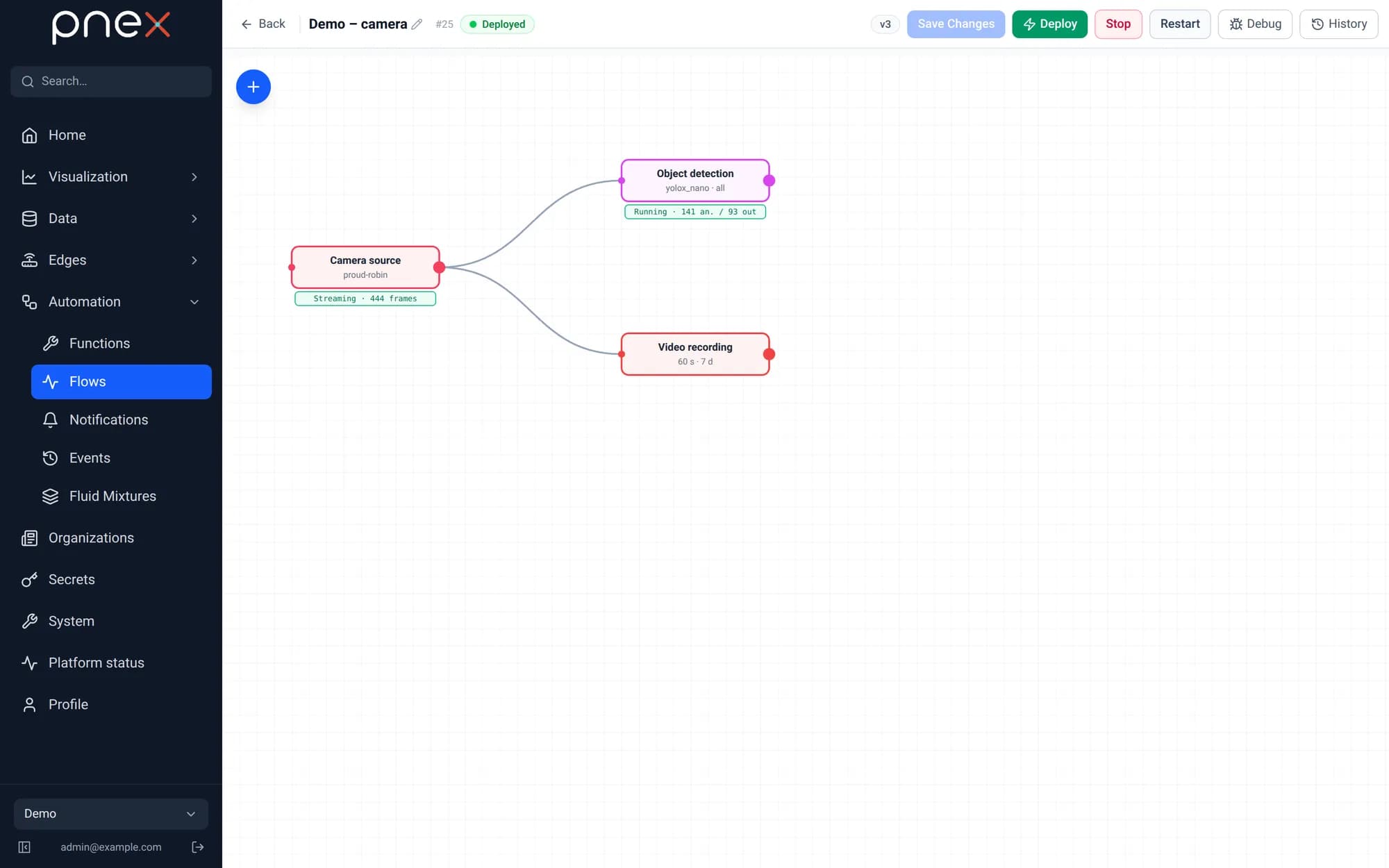

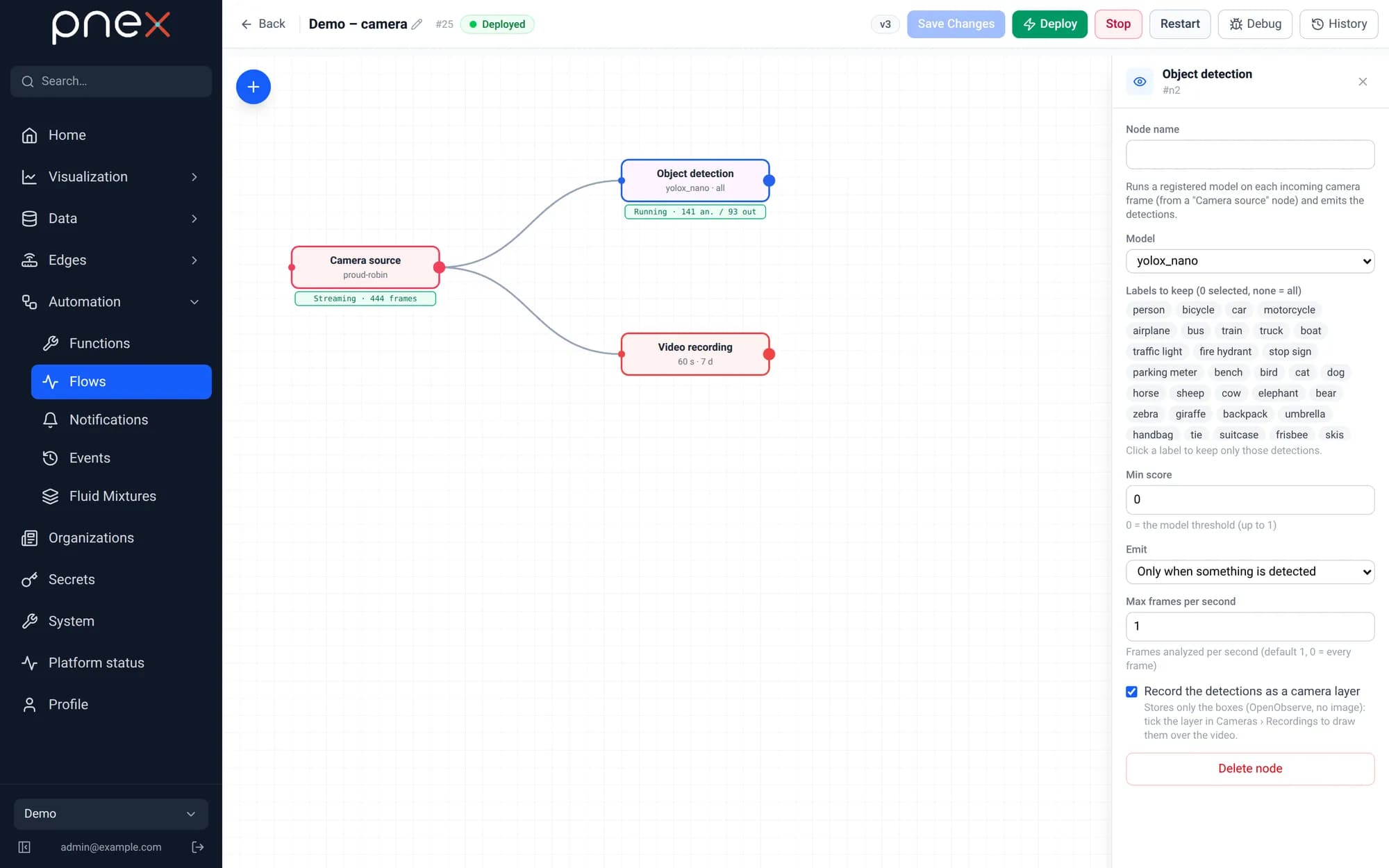

A single flow records the camera and detects objects. Open Automation › Flows, create a flow, and add from the palette:

1. Camera source — pick the camera. Max frames per second samples the stream (0 = every frame).
2. Object detection — wire it after the camera source, pick the model and the labels to keep.
3. Video recording — wire it after the same camera source.
4. Optionally a Debug node after the detection to watch the results, then Deploy.

Once deployed, each node shows a live status badge under it: Streaming with the frame count for the source, Running with analysed/emitted counters for the detection. A model that fails to load or a camera that sends nothing shows up there in amber or red — no need to dig into logs.

Object detectionCopy Anchor Link

The output payload carries detections — label, score and bbox per object — plus a short summary ("chair 80%, tv 78%") shown on a Debug node. Chain it to a Notification to be alerted when a person shows up, or to an Event log node to keep a searchable history in Automation › Events.

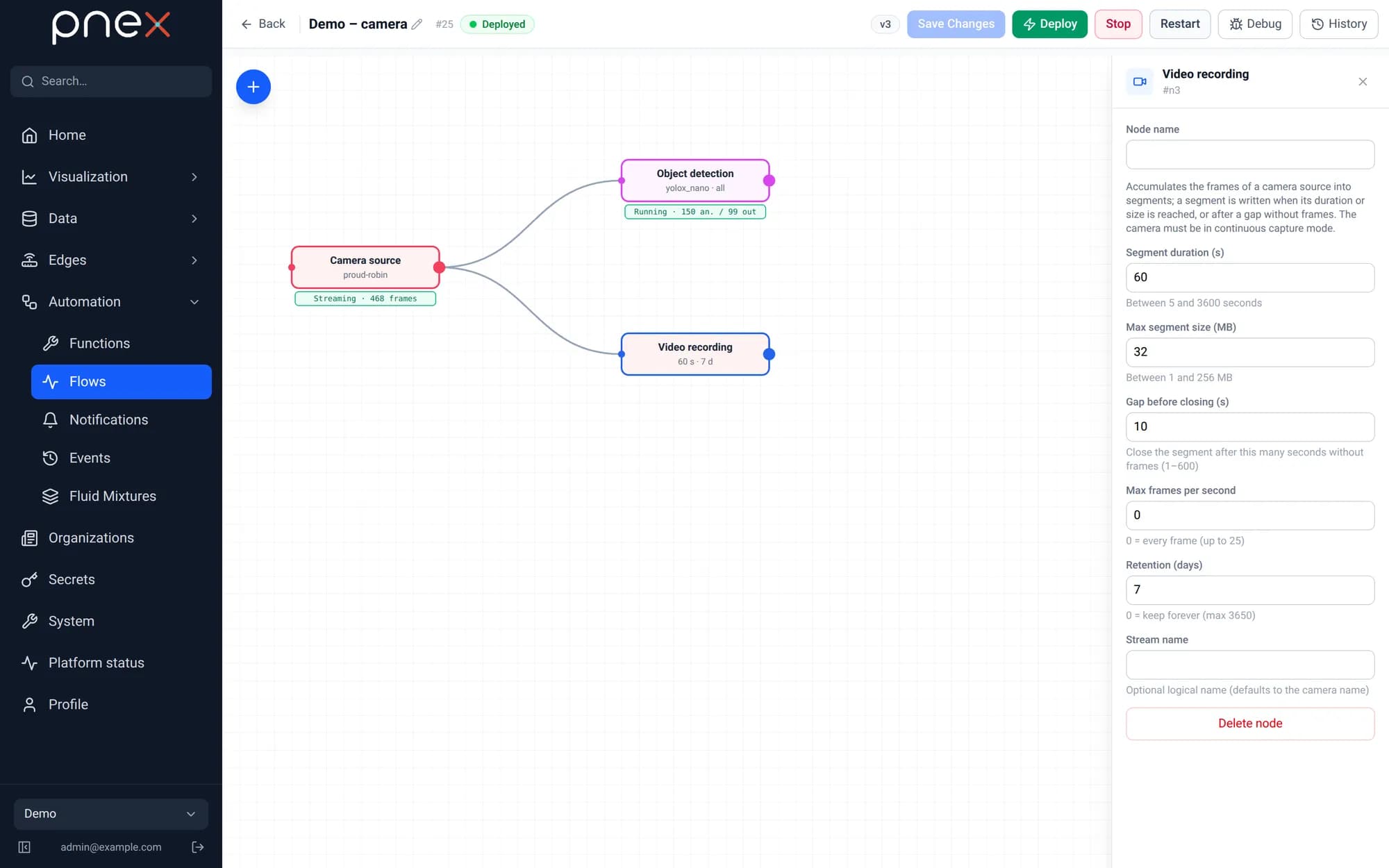

Video recordingCopy Anchor Link

Segments are MJPEG-AVI files, readable by VLC or ffmpeg, stored with the media backend (filesystem or S3-compatible). Short segments keep a crash from losing more than a minute, and retention works to the minute.

Recordings and detection layersCopy Anchor Link

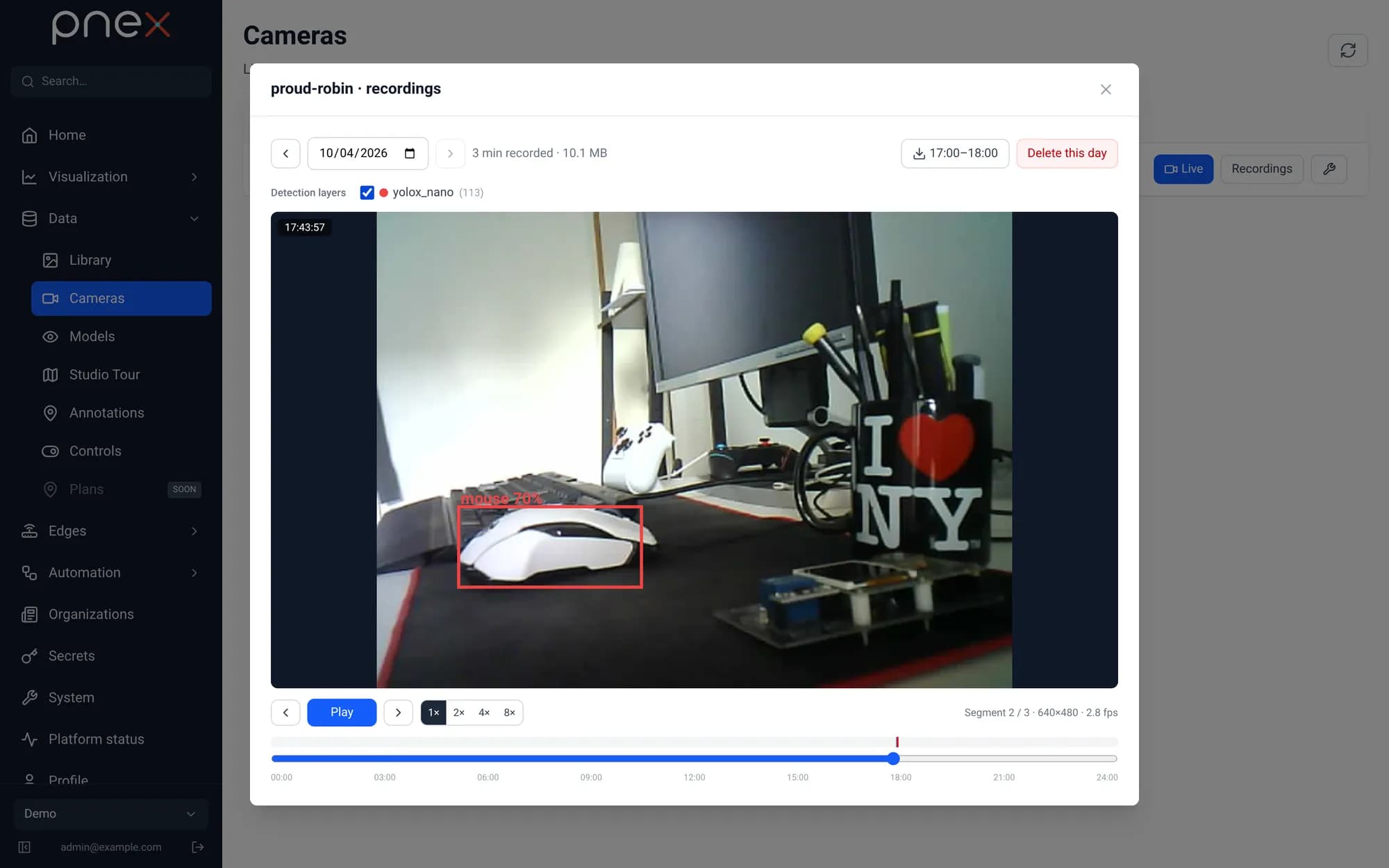

Recordings shows one day at a time as a continuous recording, even though it is stored as segments:

• the timeline marks the recorded periods; drag the slider to jump anywhere;
• the player chains the segments (next one preloaded), at ×1 to ×8;
• export a time range as a single AVI file, or delete the day;
• Detection layers lists every detection node that recorded boxes that day. Tick a layer to draw its boxes over the video, one colour per layer.

A layer stores only the boxes (label, score, position) in OpenObserve — a few hundred bytes per analysed frame instead of a second, annotated video. Layers need no wiring to the recorder: any detection node with Record the detections as a camera layer, in any flow, adds its own layer, named after the node (or the model). Their retention follows the organization's OpenObserve retention.

SizingCopy Anchor Link

An ESP32-CAM in VGA at quality 12 sends 15–30 KB per frame. At 5 fps that is about 360 MB per hour of continuous recording per camera. YOLOX-nano analyses a frame in about 30 ms on a desktop CPU; larger models (YOLOX-l, ~1.4 s) suit a sampled rate rather than every frame.
