Firmware & OTA

PNeX builds, flashes and updates firmware without leaving the platform.

Three device familiesCopy Anchor Link

All three are compiled per device by the server, use the same encrypted transport and OTA, and are flashed the same way. A custom firmware runs on the board of a generic model: you pick its project when you provision the device. Computers and Raspberry Pis are not boards: they join as edge agents.

Build serviceCopy Anchor Link

The server compiles firmware on demand per device: the PlatformIO sources are embedded in the server binary, secrets (Wi-Fi, server host, device token, encryption key, pinned certificate authority) are injected as build-time environment, and the result is stored as an artifact (PostgreSQL or S3-compatible storage). Supported SoCs: ESP8266, ESP32, ESP32-C3, ESP32-S3.

Builds run from a job queue on a dedicated builder; the API server carries no toolchain. The Wi-Fi password lives in the secrets vault: a queued build job only holds a reference to it, and the builder resolves the value when it compiles.

Every binary is unique to its device — there is no reusable generic image. Changing a Wi-Fi password therefore rebuilds nothing: devices already flashed keep the old credentials until you rebuild and reflash them, one by one.

Custom firmwareCopy Anchor Link

The Firmware page (Edges menu) is a C++ editor in the browser. You write a single main.cpp against the PNeX library; the board comes from the device, and the library is always the version shipped with your server — nothing to install.

The PNeX APICopy Anchor Link

#include <Pnex.h>
#include <Adafruit_BME280.h>

PnexDevice pnex;
Adafruit_BME280 bme;

void setup() {
    Wire.begin(21, 22);
    bme.begin(0x76);

    // Announced to the server; each metric becomes its own telemetry series.
    pnex.addMetric("temp", "°C");
    pnex.addMetric("humidity", "%");

    // Callable from PNeX; the return value becomes the acknowledgement.
    pnex.onCommand("calibrate", [](JsonVariantConst args) {
        return true;
    });

    pnex.begin();
}

unsigned long last = 0;

void loop() {
    pnex.loop();  // every iteration: heartbeat, OTA, commands
    if (millis() - last >= 10000) {
        last = millis();
        pnex.publish("temp", bme.readTemperature());
        pnex.publish("humidity", bme.readHumidity());
    }
}

• addMetric(id, unit) — declares a metric before begin() (up to 16). The server stores only the metrics the firmware announced; anything else is dropped.
• publish(id, value) — sends a value (float, integer, bool or short string). It lands in the device's telemetry like any other measurement, ready for flows, dashboards and alerts.
• onCommand(name, callback) — declares a command (up to 8). The firmware editor lists the commands each device announced and can send them; a command the firmware does not know is answered unknown_command. A flow node for custom commands is planned.

The + PneX API menu of the editor inserts these calls with their documentation.

Wi-Fi credentials, device token and encryption key never appear in your sketch: the builder injects them for the target device.

LibrariesCopy Anchor Link

Extra libraries come from a curated catalog with pinned versions: BME280, BMP280, SHT3x, AHT20, BH1750, INA219, ADS1x15, OneWire, DS18B20, DHT, NeoPixel, ESP32Servo, SSD1306 and Adafruit Unified Sensor. Add them from the + Lib menu; the server refuses any library outside the catalog. Network clients (MQTT, cloud HTTP SDKs…) are left out on purpose: transport is PNeX's job.

RevisionsCopy Anchor Link

Every save creates an immutable revision with its author and message; saving identical content creates nothing. The history lets you compare and restore. Each build records the revision it compiled, so you always know which code runs on which device — and pushing an older build over the air is a rollback.

Verify, then deployCopy Anchor Link

• Verify compiles your code without any real secret and keeps no artifact. Compiler errors are mapped onto the lines of your main.cpp; errors raised inside a library are listed with their file.
• Provisioning: in the device wizard, the Model step offers the firmware projects compatible with the board's chip. One project can serve many devices.
• Rebuild compiles the project's latest revision for that device; then flash it over USB or push it over the air.

A project cannot be deleted while devices use it.

Build-time safetyCopy Anchor Link

Compiling C++ means running user-controlled tooling on the builder, so custom builds are fenced:

• platformio.ini is generated by the server and never editable: it carries the secrets and the library policy, and build scripts declared there would run arbitrary code.
• main.cpp is checked before compiling: no absolute or .. includes, no #embed, no incbin — nothing that could pull a builder file into the binary you download. Size is capped at 256 KB.
• Only catalog libraries are accepted.
• An optional bubblewrap sandbox runs the compiler without network, in its own process namespace, with the host read-only except the job workspace and an empty home directory.

USB flashingCopy Anchor Link

One-click flashing, with no toolchain on your machine:

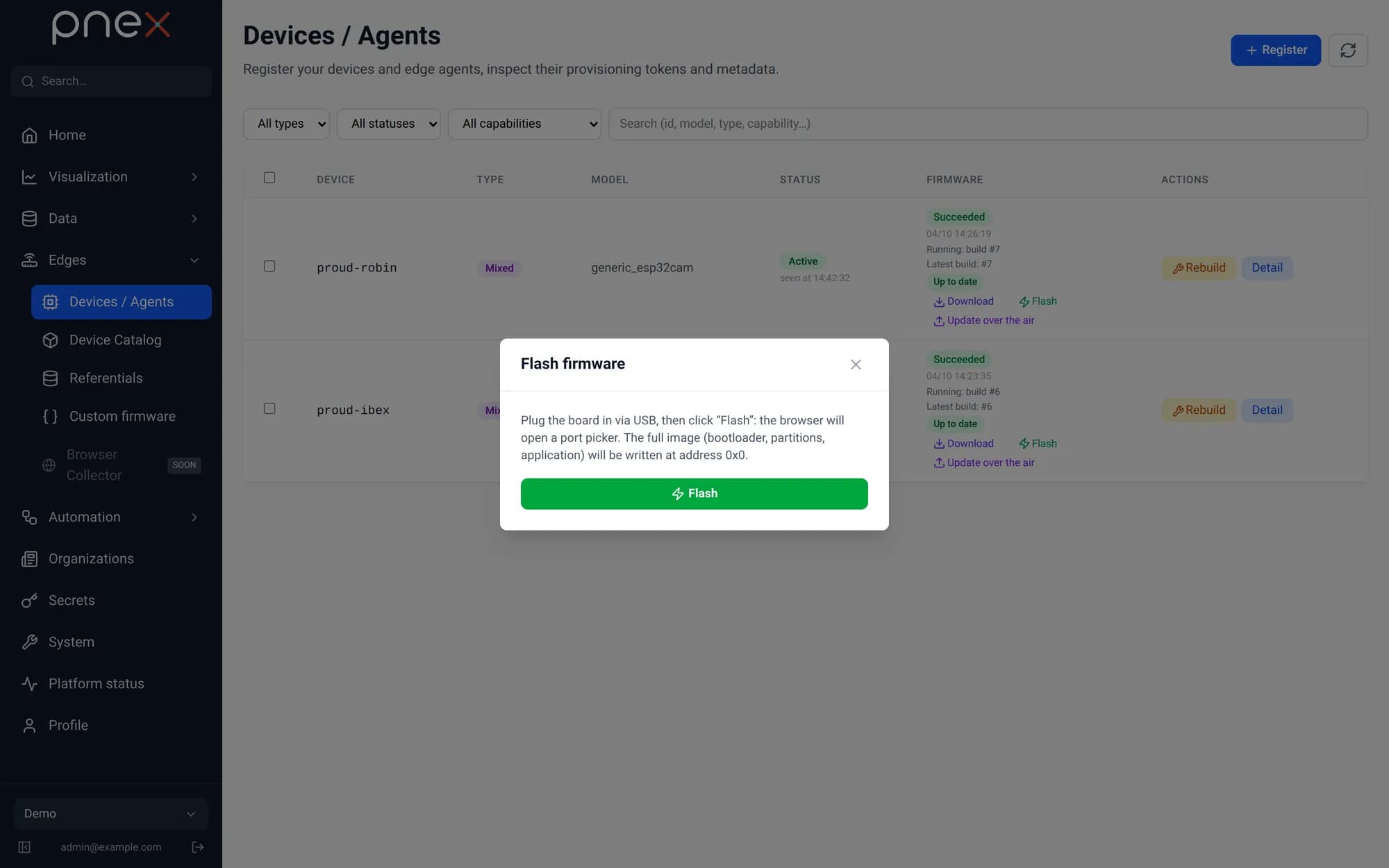

• Web app (Chrome, Edge): Web Serial with esptool-js. The browser picks the serial port with a user gesture, downloads the merged binary from the artifact store and flashes the board.
• Desktop app (Linux, Windows): an embedded, version-pinned esptool flashes the board; the serial port is detected automatically.
• Android app: no USB flashing — flash from a computer, then update over the air.

OTA updatesCopy Anchor Link

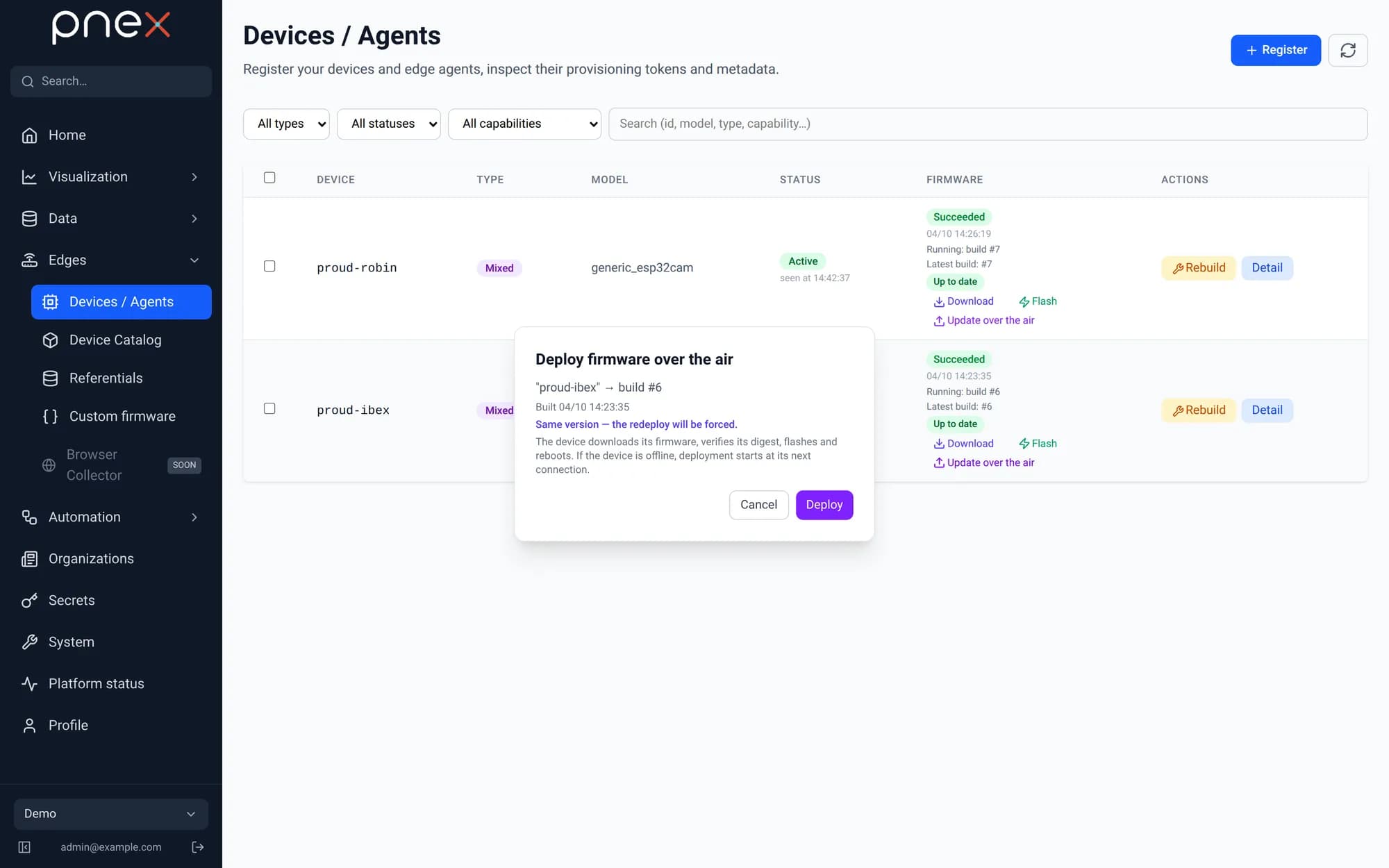

Firmware updates are a desired state pushed to online devices over WebSocket, or picked up at the next announcement. The device downloads the image over HTTPS, authenticated by its device token and with the certificate authority pinned. It hashes the image while streaming and checks the SHA-256 before switching partitions: a mismatch aborts and the old firmware keeps running. The update counts as successful only once the device reboots and announces the new version. Guards refuse duplicate or in-progress assignments and oversize payloads on constrained SoCs.

ScreensCopy Anchor Link

The firmware library supports SSD1306 OLED and ST7735 TFT screens with a status bar, connection timeline and change-only redraws — and a pnex-display flow node pipes values to them.
